Gradient Thermal Cycler (PCR Machine), 96-Well
A fast, reliable 96-well gradient PCR machine with a glove-friendly 7-inch touch screen, one-click slow cooling and space-saving front-to-back airflow.
For research use only. Price on request – written quotation by email.
Overview
CY-PCR-01 covers everyday PCR, gradient optimisation, touchdown and long PCR, plus one-click DNA renaturation from 95 °C to 25 °C over up to 12 hours. Interchangeable blocks accept 0.2 mL and 0.1 mL tubes, strips and plates, or 384-well plates.
Key Features
What makes it practical in a working lab.
Gradient optimisation
30–99.9 °C gradient range, 30 °C maximum difference across 12 columns, ±0.1 °C gradient accuracy.

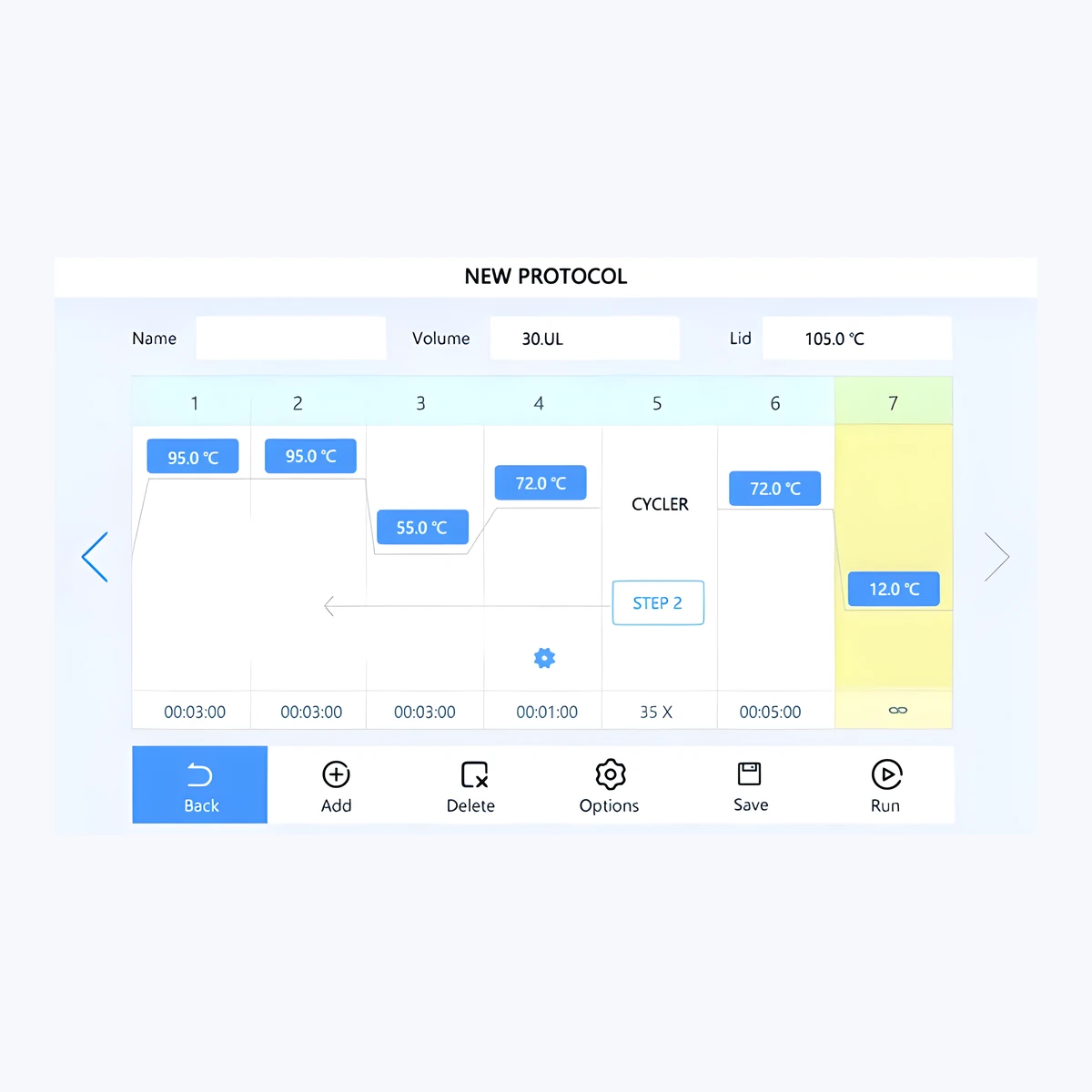

Glove-friendly touch screen
7-inch high-resolution capacitive screen; drag temperatures up and down to edit steps.
Slow cooling & renaturation
Enter start temperature, end temperature and time – the instrument handles uniform slow cooling.
Press-cap heated lid
Self-adapting lid height, 30–110 °C, with automatic power-off when the block drops below 30 °C.
Large memory
18,000 programs on board, unlimited on USB; multi-user password login.
Bench-saving airflow
Front intake and rear exhaust allow several units side by side.
Specifications
Manufacturer specifications. Final configuration is confirmed in the quotation.
| Temperature control method | Tube / Block |
| Block temperature range | 0–99.9 °C |
| Max. heating rate | 7 °C/s |
| Max. cooling rate | 5 °C/s |
| Block uniformity | ±0.2 °C |
| Block accuracy | ±0.1 °C |
| Display resolution | 0.1 °C |
| Adjustable ramp rate | 0.1–4 °C/s |
| Gradient accuracy | ±0.1 °C |
| Gradient uniformity | ±0.2 °C |
| Gradient range | 30–99.9 °C |
| Max. temperature difference | 30 °C |
| Gradient distribution | 12 columns |
| Lid type | Press-cap, self-adapting height |
| Lid temperature | 30–110 °C |
| Heating time | ≤ 100 s from room temperature to 105 °C |
| Auto power-off | When block < 30 °C (configurable) or program ends |
| Program storage | 18,000 (unlimited on USB) |
| Max. steps / cycles | 30 steps (nested cycles) / 10,000 cycles |
| Time increment | 1–120 s (long PCR) |
| Temperature increment | 0.1–10 °C (touchdown PCR) |
| Power-failure protection / auto pause | Yes / Yes |
| Remote management | Optional: one computer controls 100+ units |
| Blocks & consumables | 96 × 0.2 mL (tubes, 8-strips, plates); 96 × 0.1 mL; 384-well; plate module 114 × 78 mm |
| Screen | 7-inch capacitive touch screen |
| Power | 85–265 V, 50–60 Hz, 550 W |
| Dimensions / weight | 26 × 41 × 24.5 cm / 7.3 kg |
| Language | English, Chinese |
Applications
Typical research uses.
Frequently Asked Questions
Answers for buyers and lab managers.
What is the gradient range of this thermal cycler?
30–99.9 °C with up to 30 °C difference across 12 columns and ±0.1 °C gradient accuracy.
How fast is it?
Maximum heating rate 7 °C/s and cooling rate 5 °C/s; ramp rate is adjustable from 0.1 to 4 °C/s.
Which plates and tubes fit?
0.2 mL tubes, 8-tube strips and 96-well plates (no skirt or half skirt; full skirt customisable), 0.1 mL formats, and 384-well plates with the 384 module.
What power supply does it need?
85–265 V, 50–60 Hz, so it works worldwide. Plug type is confirmed in the quotation.
Can it run slow cooling for DNA annealing?
Yes – one-click renaturation with uniform cooling from 95 °C to 25 °C over up to 12 hours.
How do I get the price?
Request a quote with quantity and destination; we reply with a written quotation.
