Digital Multi-Modality Molecular System: dPCR, Digital Isothermal & Digital Immunoassay
One instrument, three digital modalities: digital PCR, digital isothermal amplification and digital immunoassay – quantifying nucleic acids and proteins on the same platform.
For research use only. Not for use in diagnostic procedures. Price on request – written quotation by email.
Overview

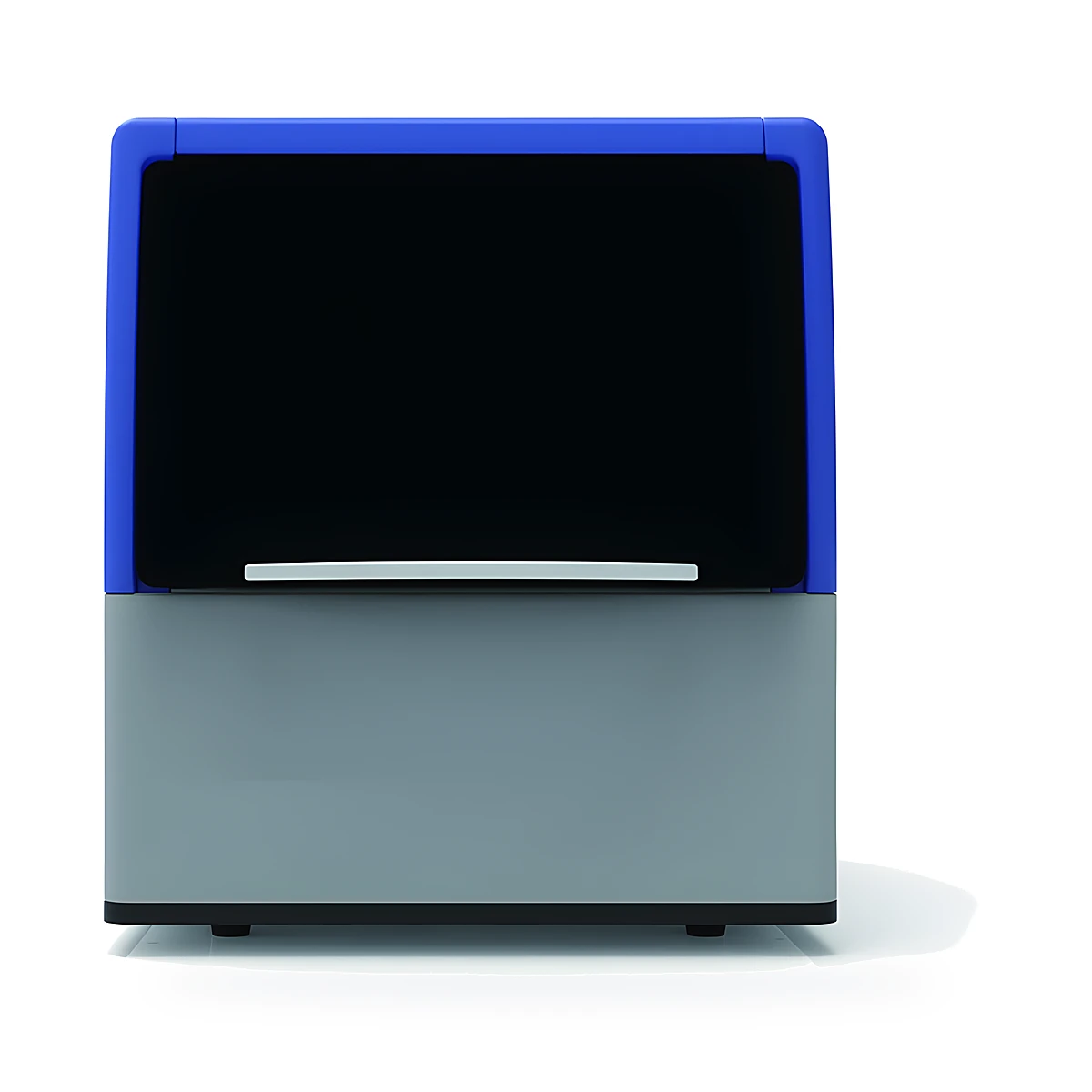

CY-PCR-03 is built on the same chip-based digital PCR engine as CY-PCR-02 and adds digital isothermal amplification and digital immunoassay. Labs that work on both nucleic acid and protein biomarkers can run ultra-multiplex DNA/RNA quantification and fg/mL-level protein detection without buying a second platform.
Key Features
What makes it practical in a working lab.
Three modalities
Digital PCR, digital isothermal amplification and digital immunoassay (immuno-PCR ELISA and proximity-based protein assays).
Ultra-multiplex
Exponential ultra-multiplex digital PCR quantifies many targets beyond the number of optical channels.
4–7 colour channels
FAM, HEX (VIC), ROX, Cy5, Quasar705, Atto425 and a customisable channel; 4/5/6/(6+1) configurations.
Fully automated
All-in-one: partitioning, amplification, reading and analysis. Sample loading under 4 minutes.
Dual thermal modules
Run two different programs at the same time, with temperature gradient.
Broad reagent compatibility
Works with common reagents for PCR, isothermal amplification and immunoassay.
Specifications
Manufacturer specifications. Final configuration is confirmed in the quotation.
| Modalities | Digital PCR, digital isothermal amplification, digital immunoassay |
| Throughput | 24 samples per run (minimum 2, one chip per sample) |
| Fluorescence channels | FAM, HEX (VIC), ROX, Cy5, Quasar705, Atto425, customisable channel (4/5/6/6+1 configurations) |
| Partitions | > 20,000 per sample |
| Chip scanning time | Single channel < 0.5 min per sample |
| Sample loading time | < 4 min |
| Total run time | ≤ 3 h |
| Thermal modules | Dual PCR modules with temperature gradient |
| Width | 440 mm |
| Sensitivity | 0.01% |
| Dynamic range | 5 logs |
| Effective partition ratio | ≥ 95% |
| Partition uniformity | > 99% |
| Quantification accuracy | ± 10% |
Applications
Typical research uses.
Frequently Asked Questions
Answers for buyers and lab managers.
What is a digital multi-modality molecular system?
It is a digital PCR platform that can also run digital isothermal amplification and digital immunoassays, so one instrument quantifies both nucleic acids and proteins.
How is it different from CY-PCR-02?
Both share the 24-sample chip digital PCR engine. CY-PCR-03 adds digital isothermal amplification and digital immunoassay capability.
What protein sensitivity can I expect?
With the matched ultrasensitive immunoassay kits (CY-DIA-02), detection limits reach the fg/mL range from 2–5 µL of sample.
Which consumables does it use?
Glass-based microfluidic chips (20K and high-density 60K), plus the auxiliary consumables pack (CY-PCR-05).
Can I get a quotation with reagents and consumables?
Yes. We quote the instrument, chips, reagent kits and immunoassay kits together so you deal with one supplier.
Is it for clinical diagnosis?
Supplied through CHANGYU MALL for research use only.
