Looking for a NanoDrop alternative? CHANGYU MALL offers micro-volume UV-Vis spectrophotometers that read DNA, RNA and protein from 0.5–4 µL, with A260/A280 and A260/A230 purity ratios on screen. They are cost-effective options from the China supply chain, quoted together with your other lab items.
Micro-volume spectrophotometers in CHANGYU MALL

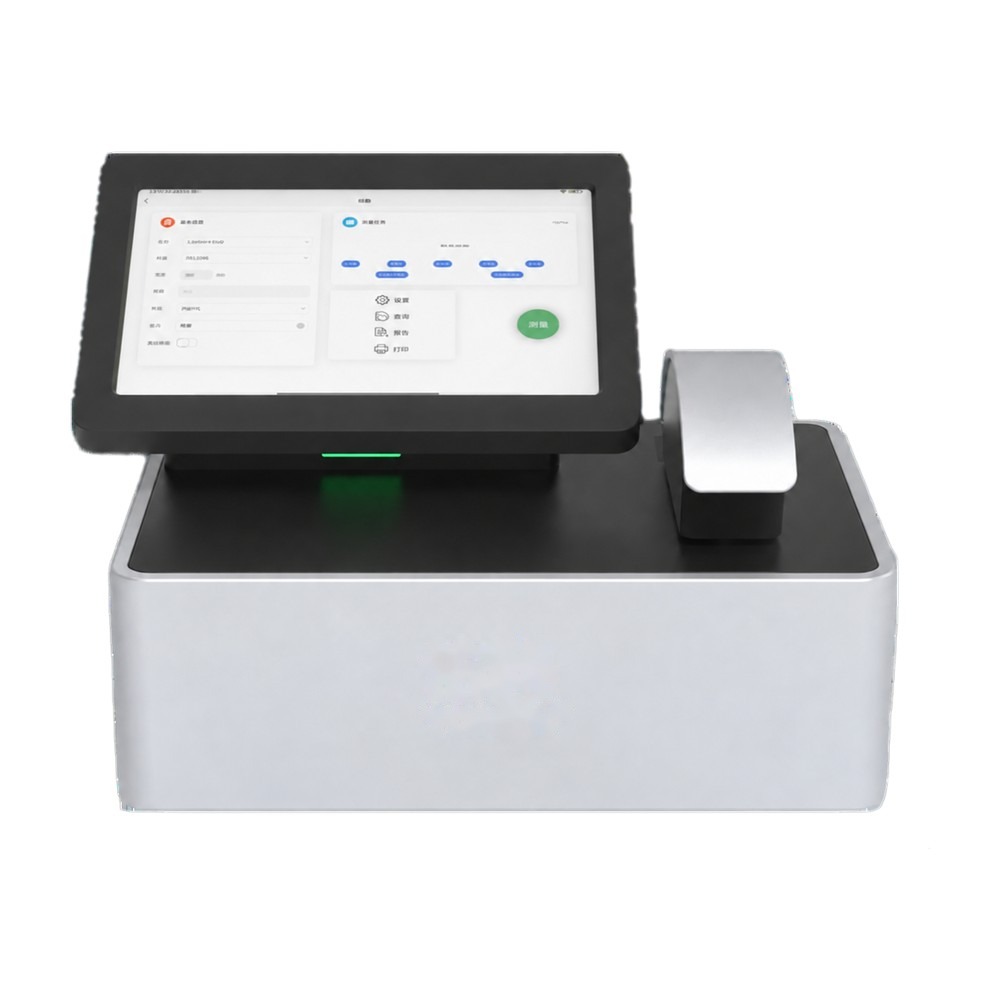

Micro-Volume UV-Vis Spectrophotometers (from 0.5 µL)
- 200–900 nm; xenon lamp with CMOS linear image sensor
- Micro-volume and cuvette modes on selected models
- Tablet touch control; audit trail and user permissions

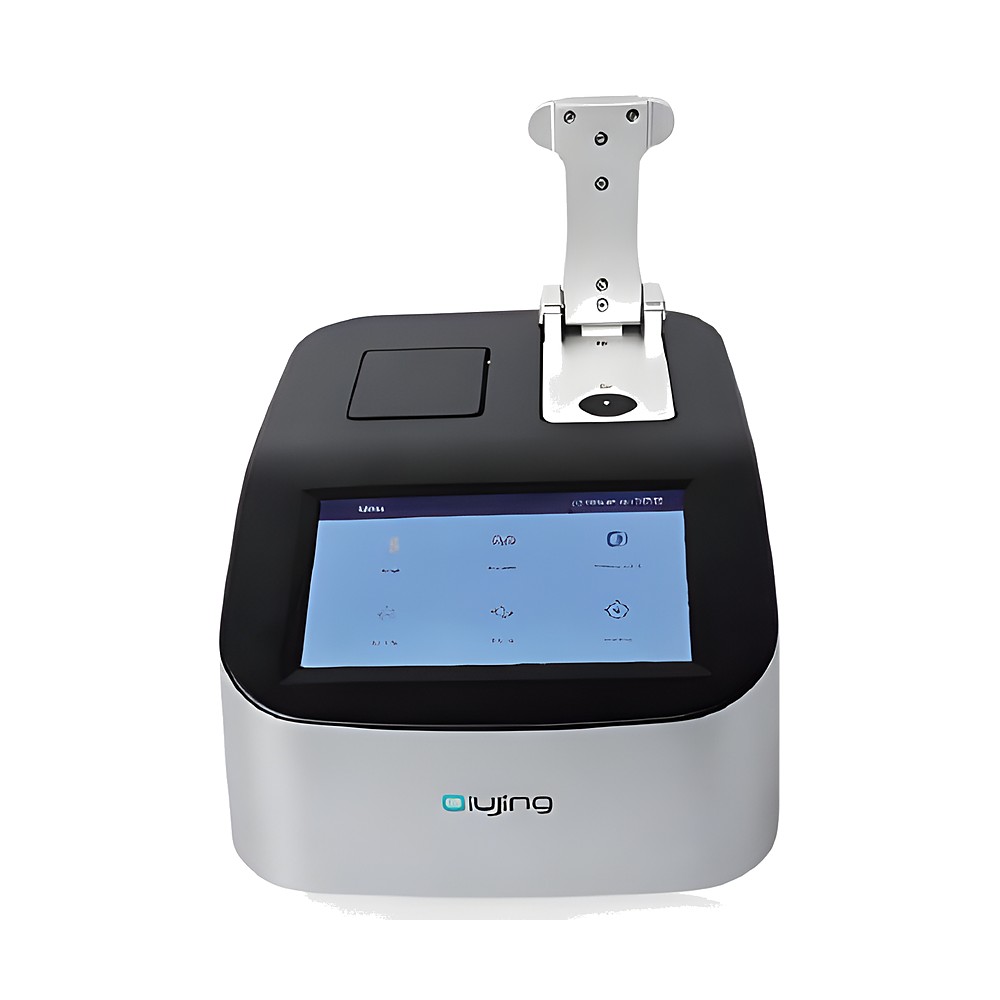

Micro-Volume UV-Vis Spectrophotometer, 4 Path Lengths
- 4-pathlength detection technology
- Built-in printer
- High repeatability; wide concentration range
Model options at a glance
| Item No. | Path length | Sample volume | Detector | Cuvette mode |
|---|---|---|---|---|
| CY-SPC-01A | 1 mm | 4 µL | 1024-pixel CMOS | — |
| CY-SPC-01B | 1 mm | 4 µL | 2048-pixel CMOS | Yes |
| CY-SPC-01C | 1 / 0.5 / 0.05 mm | 0.5–5 µL | 2048-pixel CMOS | — |
| CY-SPC-01D | 1 / 0.5 / 0.05 mm, automatic | 0.5–5 µL | 2048-pixel CMOS | Yes |
| CY-SPC-01E | 1 / 0.5 / 0.1 / 0.05 / 0.02 mm, automatic | 0.5–4 µL | 4096-pixel CMOS | — |
| CY-SPC-01F | 1 / 0.5 / 0.1 / 0.05 / 0.02 mm, automatic | 0.5–4 µL | 4096-pixel CMOS | Yes |
| CY-INS-04 | 4 path lengths | Micro-volume | See data sheet | See data sheet |
What to compare when you choose a micro-volume spectrophotometer
- Path lengths. More path lengths (switched automatically) let one drop cover both dilute and concentrated samples without dilution.
- Sample volume. 0.5–1 µL matters when your RNA or protein is precious.
- Wavelength range. 200–900 nm covers nucleic acids (260 nm), protein (280 nm), contaminants (230 nm) and labelled dyes.
- Cuvette mode. Useful for OD600 and for samples you prefer to read in a standard cell.
- Data handling. Touch-screen software, export, user permissions and audit trail if your lab works under GLP.
Reading the numbers correctly
An A260/A280 near 2.0 is expected for pure RNA and near 1.8 for pure DNA, and a low A260/A230 points to salt, guanidine or phenol carry-over. A good ratio does not prove RNA is intact – check integrity on a gel or by RIN. See our guides: why an A260/A280 of 1.8 is not a purity pass, RNA quality reference values and reading 28S and 18S on a gel.
How ordering works
- Single units are welcome; there is no minimum order quantity.
- Equipment, kits and global-brand items can be combined on one quotation and one shipment.
- Payment by bank transfer (T/T) in USD to our company account.
- Power supply (voltage and plug), shipping method, lead time and export documents are confirmed with each quotation.
Frequently asked questions
Is this a NanoDrop?
No. NanoDrop is a trademark of Thermo Fisher Scientific. The instruments on this page are independent micro-volume spectrophotometers and are not made by or affiliated with Thermo Fisher. Compare the specifications against your application before you order; we can send the data sheet first.
Can it measure A260/A280 and A260/A230?
Yes. The CY-SPC-01 series covers 200–900 nm, which includes 230, 260 and 280 nm, so you can read nucleic acid concentration and the A260/A280 and A260/A230 purity ratios.
How much sample do I need?
Depending on the model, 0.5–4 µL per measurement. Models with automatic path-length switching accept 0.5–5 µL or 0.5–4 µL; the single 1 mm path-length models use 4 µL.
Can I also measure in a cuvette?
Yes, on the models listed with cuvette mode (CY-SPC-01B, 01D and 01F). Use it for diluted samples or cell-culture OD600 readings.
Can I order just one instrument?
Yes. Single units are welcome. Power supply, shipping method and lead time are confirmed with your quotation.
NanoDrop is a trademark of Thermo Fisher Scientific. CHANGYU MALL products are not affiliated with Thermo Fisher. For research and laboratory use.
Send us your list
Item numbers, quantities and destination country. We reply with one written quotation.
